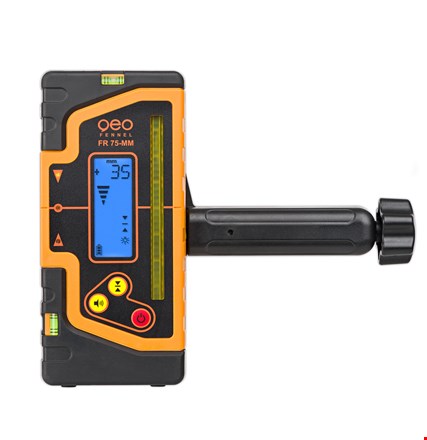

Geo-Fennel FR 75-MM Receiver

Product Description:

FR 75-MM
Receiver for Line Lasers

For red and green laser.
With digital level indication in millimeters.
Extra long receiving window of 100 mm.
mm-indication of difference between laser plane and “0” level.

Technical data

2-step accuracy: far & close distance
Accuracy mm-indication: ± 1 mm
Length receiving window: 100 mm
Length receiving area
mm-indication: 50 mm
Measuring units: mm
Signal tones: 3
Display indication: front & back
LED indication: front, side, back
Power supply / operating time: 4 x Alkaline / 55 h
Temperature range: -10°C to +50°C
Display illumination: yes
Magnets: top, side
Vials: top, side
Dust / water protection: IP 65
Dimensions: 172 x 78 x 32 mm
Weight: 0,5 kg

Supplied with

4 x AA Alkaline batteries
