Maximum diameter range: 1650ft/ 500m

Leveling range: ±3 degree

Accuracy: ±1/16” @100ft/ ±1.5mm@30m

Digital laser receiver- for easy finding of level during application

Easy Variable speed selection (max: 800RPM) and manual scan angles

Measuring range:      1650ft/500m

Accuracy:   ±1/16”@100ft (±1.5mm@30m)

Batteries: 4x LR14-C alkaline batteries & Li-ion battery

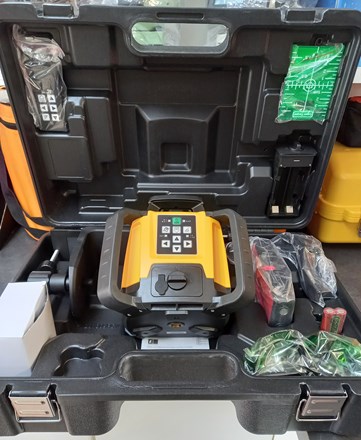

Includes:   glass, target, Li-ion battery,4XLR14-C,digital detector, remote.

Package:    Plastic case

Specifications:

• Horizontal Rotary Accuracy:               ±1.5mm @ 30m
• Vertical Rotary Accuracy:                   ±3mm @ 30m
• Vertical Up Beam Accuracy:               ±3mm @ 30m
• Compensation Range:                        ≥4°
• Slope Range:                                      ±10%
• Minimum Increment:                            0.01%
• Scan Range:                                       15°,30°,60°
• Working Range with Detector:             0.5m - 400m
• Leveling Time:                                     ≤20 seconds
• Rotation Speed:                                  600rpm ±10%
•                                                             600/300/150/0 rpm ±10%
• Laser Class:                                        Class 2 (EN60825-1)
• Laser Wavelength:                              532nm
• Operating Time:                                   ≥55 h(Li-Ion Battery pack/Alkaline)
• Recharging Time:                                 ≤8 h
• Power Supply:                                      Li-Ion Battery Pack
• IP Rating:                                             IP66
• Operating Temperature Range:           -10° C - +40° C
• Storage Temperature Range:              -20° C - +60° C
